[Introduction] Pendulum feeder is a continuous and uniform feeding equipment, installed under the storage tank or funnel.
[Capability] 4.5-25t/h
[Application] It is widely used in mining, construction, chemical industry, cement and building materials industries.
[Improvement] Worm wheel reducer is adopted, which has compact structure and reliable sealing device.
Chat With Us
Leave Message

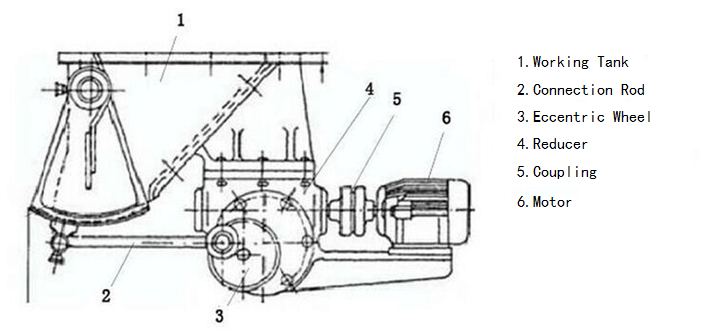

This machine uses the principle of eccentric wheel mechanism to make jaw plate do periodic reciprocating motion to convey material continuously and evenly. Its original power is to rely on the motor to drive the eccentric wheel through the turbine reducer, and then link the circular motion into reciprocating motion, driving the jaw plate reciprocating motion. When the jaw plate swings clockwise, the material accumulated on it is driven to move together by friction, and a part of new material is dropped from the bucket to fill the space formed outside the body. When the jaw plate moves counterclockwise, the material can no longer follow the jaw plate into the body because of the obstruction of the internal material, so it is pushed under it. In the feeding hopper of conveyor or conveyor, with the periodic swing of jaw plate, the continuous uniform feeding of material can be made.
|
Model |
Feeding Inlet mm |
Discharge Outlet mm |
Max Feeding Size mm |
Capacity t/h |
Motor |
Weight kg |
|
|
Model |
Power kw |
||||||
|
250X250 |
250X250 |
250*30-115 |
25 |
4.5 |
Y801-4 |
0.55 |
130 |
|
300X300 |
300X300 |
300*30-125 |
30 |
6.5 |
Y802-4 |
0.75 |
272 |
|
400X400 |
400X400 |
400*50-130 |
35 |
12 |
Y90S-4 |
1.1 |
558 |
|
600X600 |
600X600 |
600*50-150 |
50 |
25 |
Y90L-4 |
1.5 |
613 |
