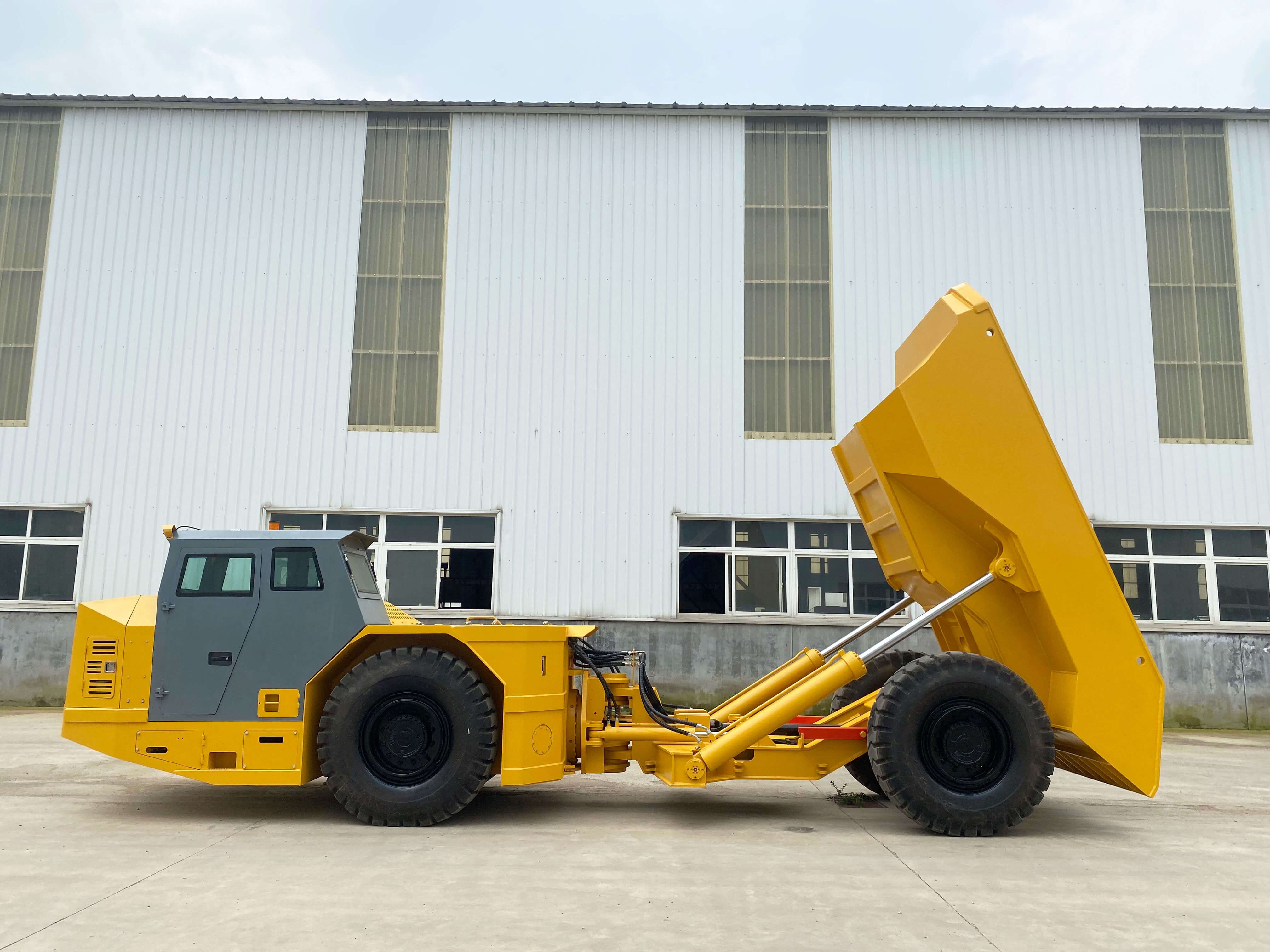

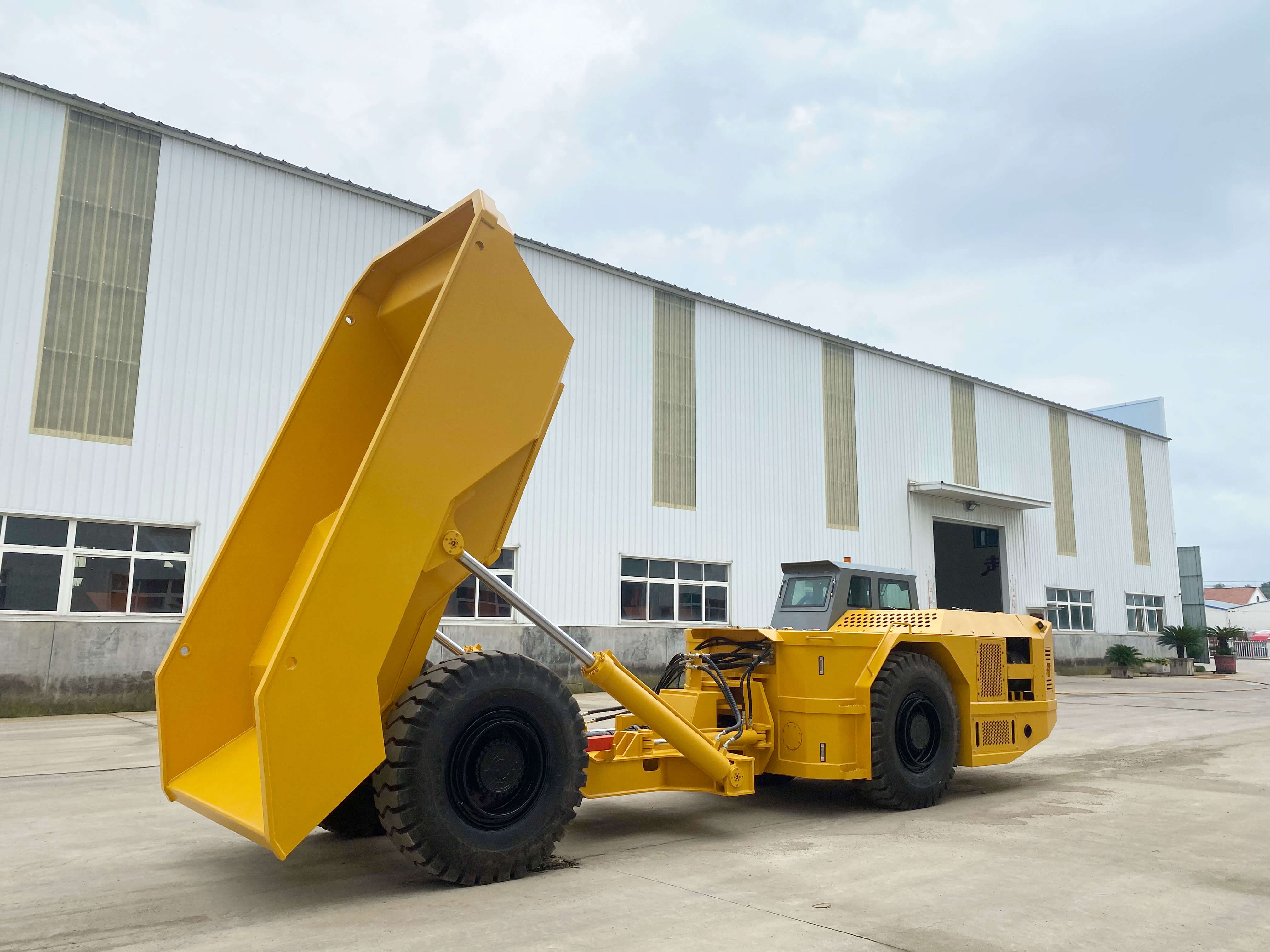

UK-20 is mainly used in underground mines with a loading capacity of 20 tons. The frames are articulated in the center with 42° steering angle, the turning radius is small. (Remote control available)
DEUTZ BF6M1013FC Power system, water-cooled, and turbocharged engine.
DANA Transmission system, hydraulic torque converter, and power-shift gearbox, which is easy to operate and stable to operate.
Spring brake and hydraulic release in the brake system, which is safe and reliable.
Canadian ECS platinum catalytic purifier with a silencer, which greatly reduces the air and noise pollution in the working tunnel.
The new design model not only improves productivity and underground tunnel transportation but also have very high safety, serviceability and comfortability.
Chat With Us
Leave Message
?
Main Technical Parameters
|
Bucket |
10m3 |
? |
Capacity |
20000kg |
|
Unloading Height |
4480mm |
Min. Ground Clearance |
300mm |
|
|
Oscilation Angle |
±10° |
Turning Radius |
5400 / 8100 |
|
|
Speed |
0-28.4km/h |
Climing Ability |
20° |
|
|
Traction |
220KN |
Weight |
19500kg |
Main Configuration
Engine：VOLVO TAD853VE/ 225kw / 2200rpm
Torque Converter：DANA C5000
Transmission：DANA RT36000
Axle：KESSLER D81, Rigid Planetary Axle
Hydraulic Pump：Gear Type
Multiway Valve：Pilot operated Clark
