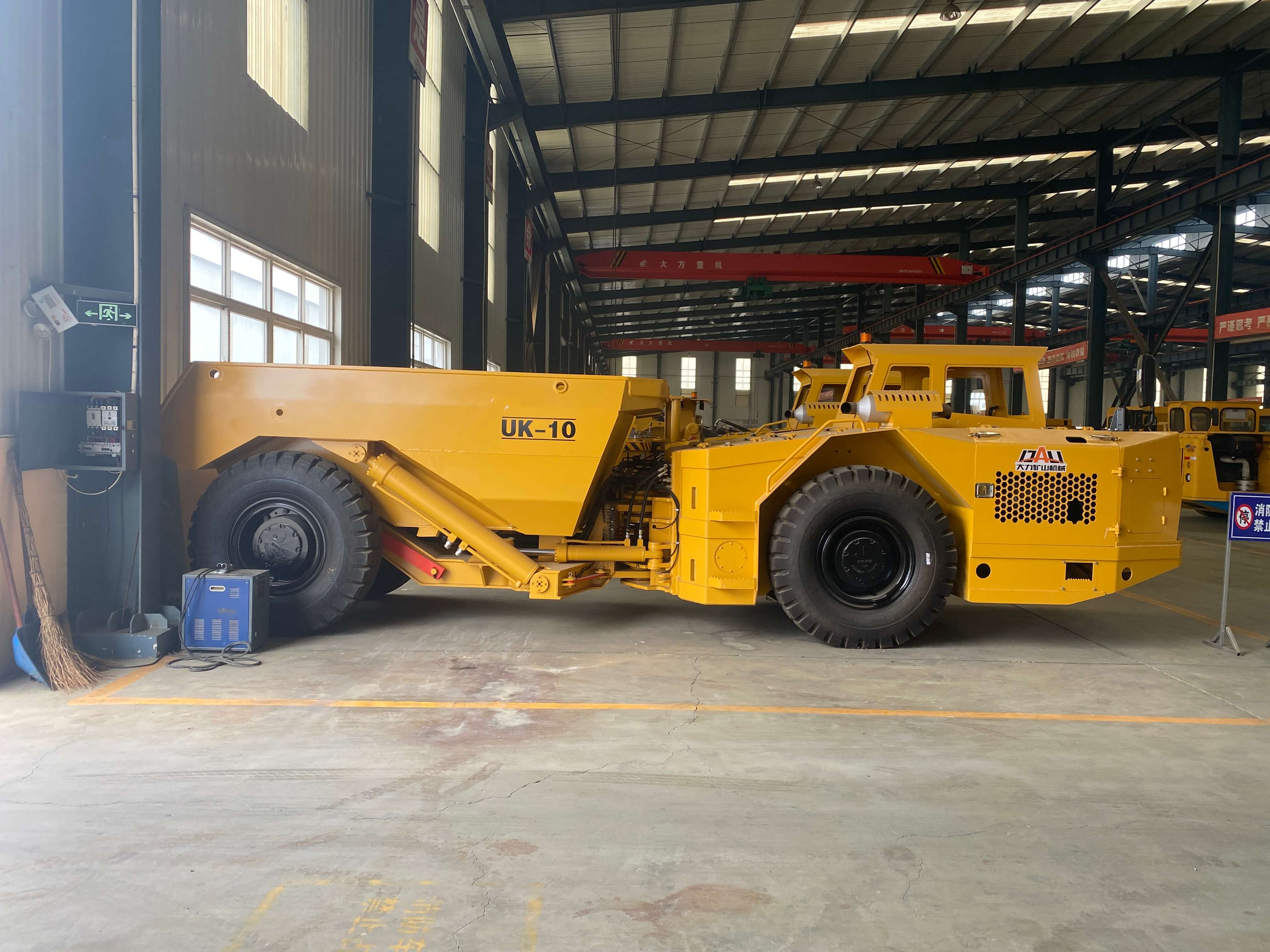

UK-10 is mainly used in underground mines with a loading capacity of 10 tons. The frames are articulated in the center, the steering angle is large, the turning radius is small. (Remote Control Available)
DEUTZ BF4M1013EC Power system, water-cooled, and turbocharged engine.
DANA Transmission system, hydraulic torque converter, and power-shift gearbox, which is easy to operate and stable to operate.
Spring brake and hydraulic release in the brake system, which is safe and reliable.
Canadian ECS platinum catalytic purifier with a silencer, which greatly reduces the air and noise pollution in the working tunnel.
Chat With Us
Leave Message

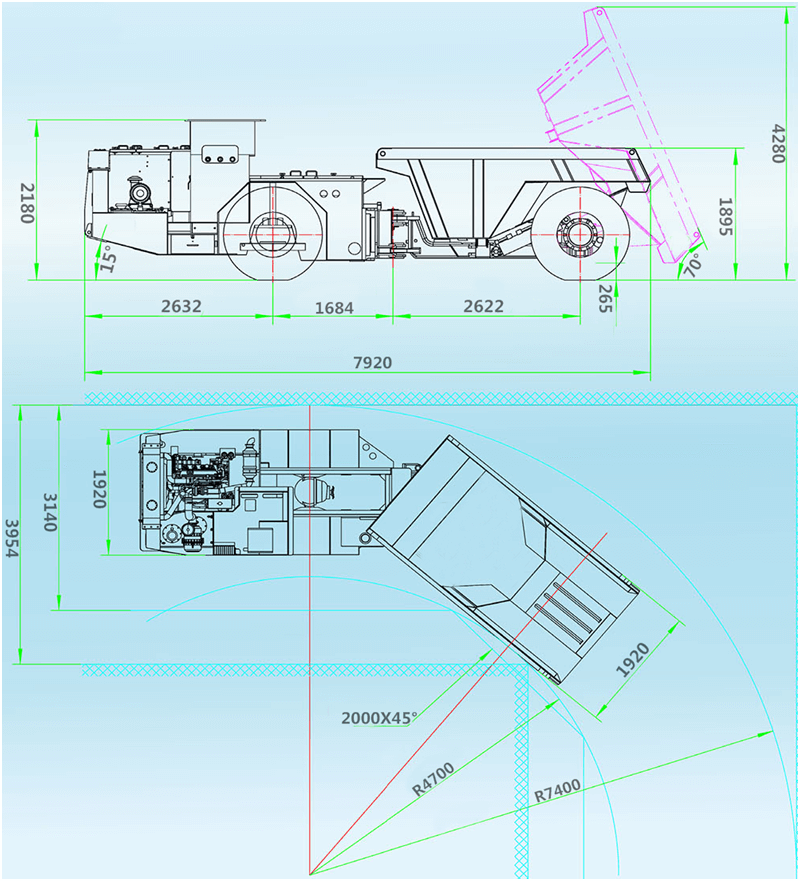

Main Technical Parameters
|
Bucket |
5m3 |
? |
Capacity |
10000kg |
|
Unloading Height |
4280mm |
Min. Ground Clearance |
320mm |
|
|
Oscilation Angle |
±8° |
Turning Radius |
4700 / 7400 |
|
|
Speed |
0-23km/h |
Climing Ability |
20° |
|
|
Traction |
143KN |
Weight |
11070kg |
Main Configuration
Engine：Deutz BF4M1013EC / 115kw / 2300rpm
Torque Converter：DANA C270
Transmission：DANA RT32000
Axle：Rigid Planetary Drive Axle
Hydraulic Pump：Duplex Gear Pump
Multiway Valve：USA PARKER
